| Business Type: |
New Product Release |
| Target Client: |
Worldwide Buyers |
| Heading: |

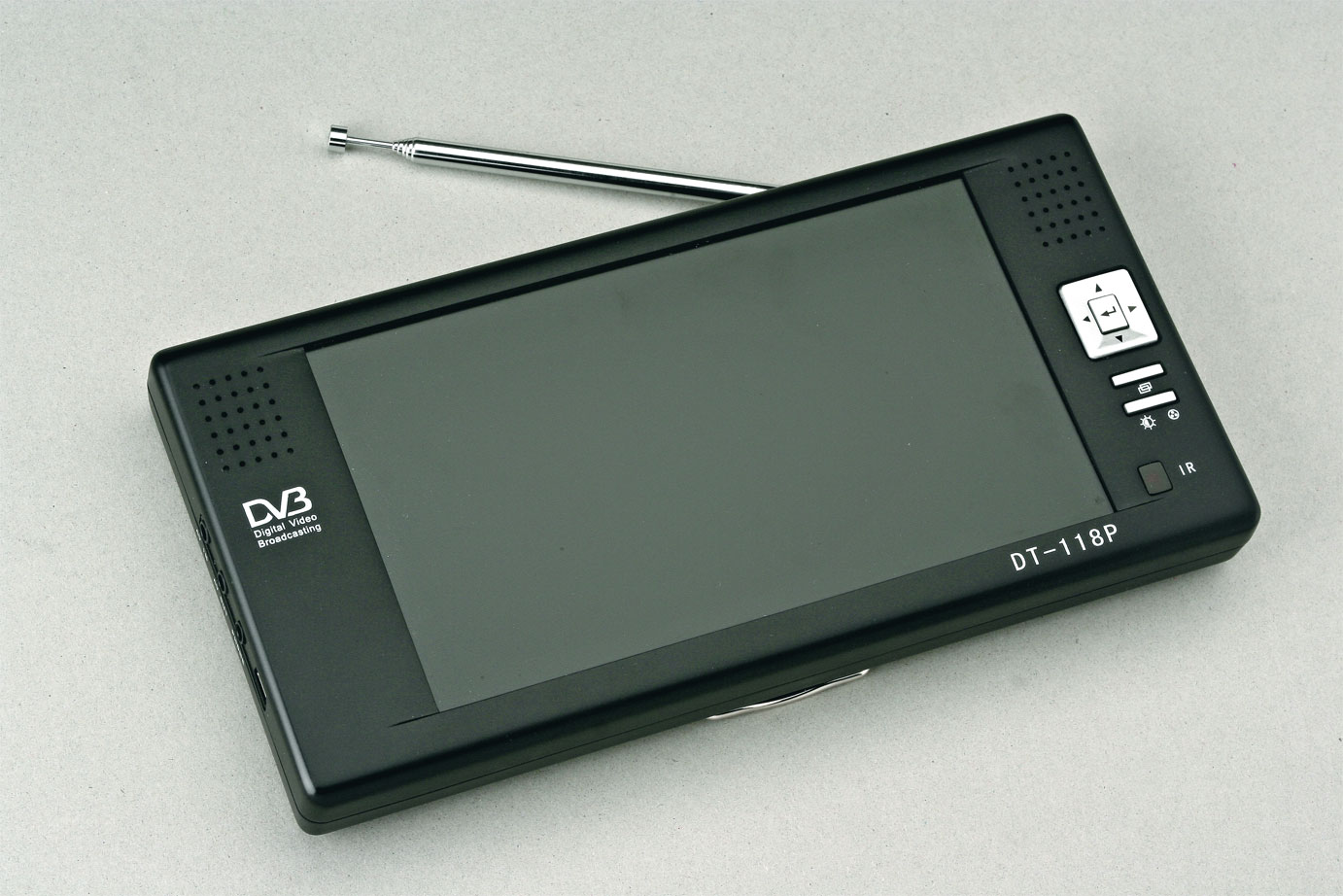

SELL 7' LCD TFT-LCD Panel |
| Description: |
Features:
1. AUO 7" LCD TFT-LCD Panel
2. DVB terrestrial Free-To-Air receiver compliant to EN 300 744
3. MHEG-5 support
4. UHF frequency range support
5. Standby with low consumption
6. Re-Modulator output adjustable (PAL)
7. Video and Audio in via 3.5mm stereo jack
8. Video and Audio out via 3.5mm stereo jack
9. Reed-Solomon decoding support (EN 300 744)
10. Automatic FEC selection (1/2,2/3,3/4,5/6,7/8)11. MPEG2 Transport Stream support: ISO/IEC 13818-1
12. DVB-Video/-Audio support: ISO/IEC 13818-2, -3
13. Wide screen 16:9 and normal 4:3 Aspect Ratio
14. Bandwidth of 7MHz & 8MHz Supported
15. Fast channel search
Specification:
TUNER:
Input Frequency:474-862 MHz
Bandwidth:7 or 8 MHz
Input Leval: -78 -20 dBm
Input Impedance 75
DEMODULATION:
Waveform: COFDM
Demodulation: QPSK,16QAM,64QAM
FEC:1/2,2/3,3/4,5/6,7/8
Mode:2K,8K
Guard:1/4,1/8,1/16,1/32
DEMULTIPLEXER:
Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate:60Mbps
7.5MBps (Parallel)
VIDEO DECODING:
Standard: ISO/IEC 13818-2 MPEG-2 MP@ML
Aspect Ratio:4:3,16:9
Video Resolution: Max.720 x 576 (PAL)
Teletext: DVB-TXT ETSI/EN 300 472
AUDIO DECODING:
Standard: ISO/IEC 13818-3
Output Mode: Left/Right channel, Stereo
Sampling Frequency:32,44,1,48KHz
PROCESSOR AND MEMORY:
CPU: Pnx 8316
Flash Memory:2MB
SDRAM:16MB
CPU SPEED:120MHz
AV OUTPUT:
Video De-emphasis: CCIR REC.405-1,625LINES
Video Bandwidth:5.5MHz
Video Output Imedance:75
Video Output Level:1.0Vp-p
Audio Output: Mono, Stereo, Left channel, right channel
Audio Output Frequency:20Hz 20KHz
Audio Output Impedance: Low
Audio Output Level:0dBm
SIDE PANEL:
ANT Input: IEC-type, IEC169-2 Female
RS232 Serial Port: USB
RCU:
Category: IR (Carrier 38KHz)
Battery: Li-ion Battery
POWER:
Input Voltage:100-240V AC,50/60Hz, DC 9V
AMBIENT:
Operation Temperature:0 - 40
Certificates:
CE, RoHS
Size: Super Slime Size
218mm(L) x 240(W) x 110(H)
|
| Quantity: |
MOQ300 |
| Unit Price: |
USD77.00 |
| Payment Terms: |
Deposit and Balance by L/C AT SIGHT |
| Product Origin: |
China |
| Port of Delivery: |
Hong Kong |
|
|
|
